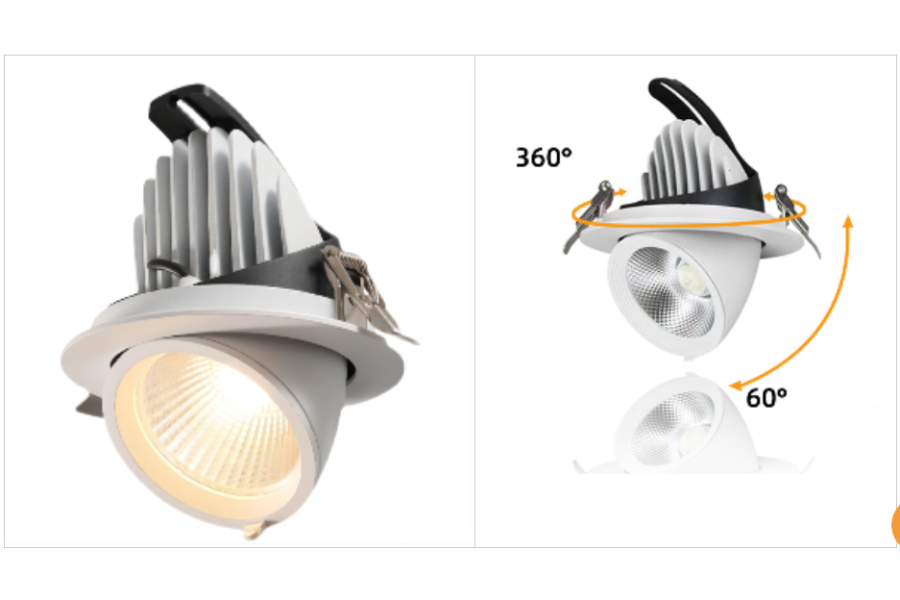

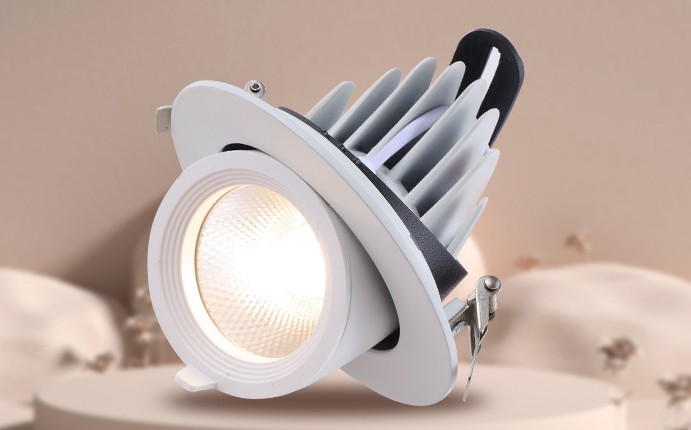

Spot Light
Description
LED downlights have many advantages, including: made of aluminum with excellent heat dissipation, leading to a lifespan of up to 50,000 hours without frequent replacement like traditional bulbs. They also offer three color temperatures for different lighting needs, efficient energy saving, a design that visually enlarges the space, and remote control capabilities. These features make LED downlights widely applicable in the field of lighting.
- Appication:

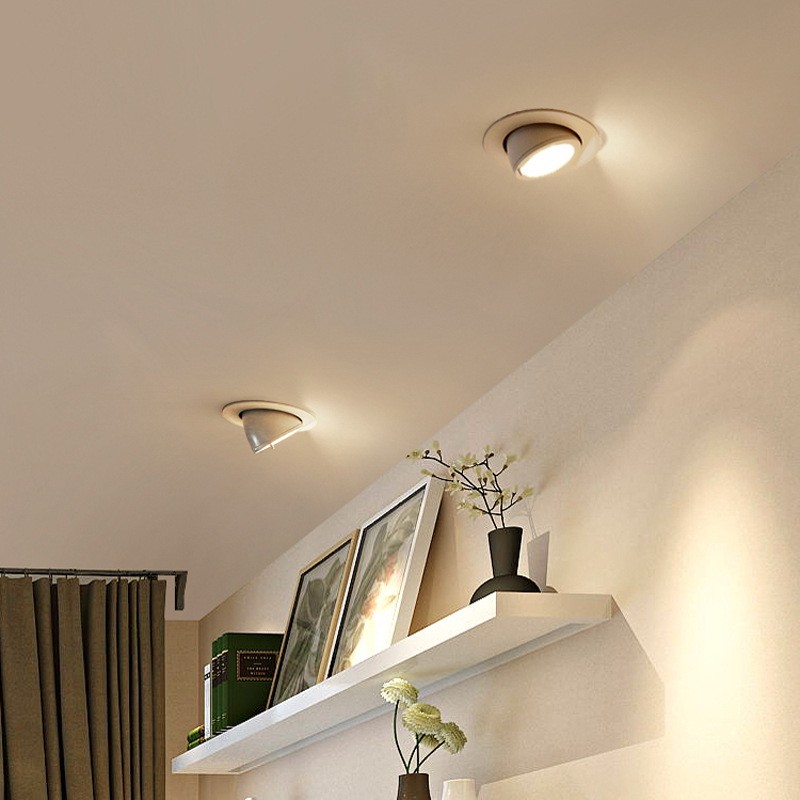

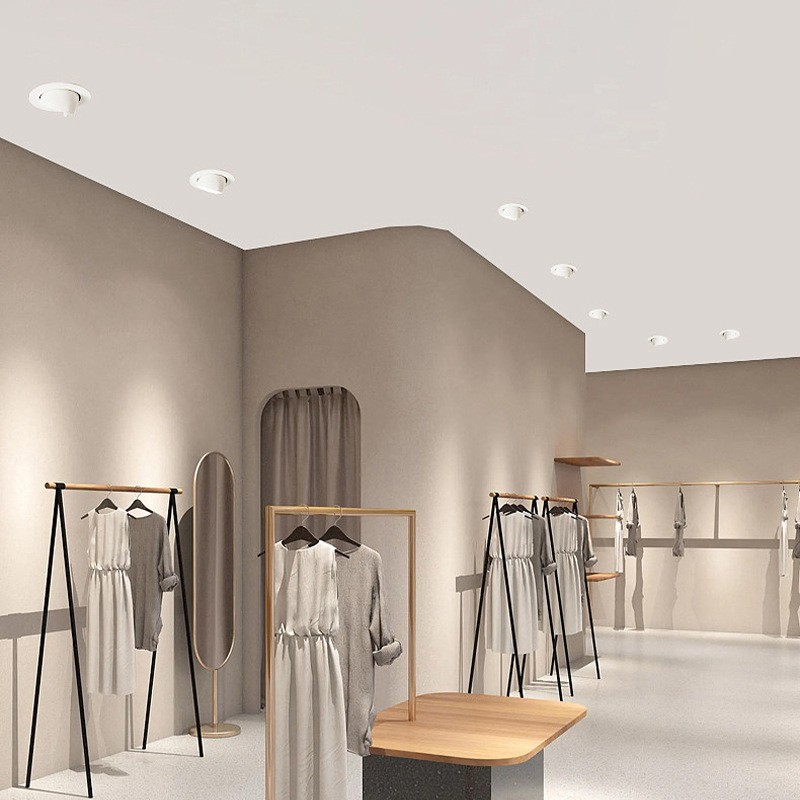

Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.
Features
- Fixed system with steel springs
- Versions with perimeter frame
- Better heat dissipation with die-casting Aluminum material
- Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting efficiency and visual comfort
- General lighting versions available with multiple power
- Supported dimming system: Triac/ 0-10V/ DALI/ Blutooth/ Zigbee
- Wiring options: On-Off – DALI – with inverter for emergency lighting
- Output luminous efficacy: >80lm/w
- Warranty: 5 years
- Lifespan: 50000hrs
Product Specifications
Product Specs:
| Model No. | TL4001 | TL4002 | TL4003 | TL4004 | TL4005 |
| Power | 7W | 15W | 25W | 35W | 50W |
| Power Factor | 0.5 | 0.5 | 0.9 | 0.9 | 0.9 |
| Dimension(mm) | 86 | 114 | 140 | 165 | 190 |
| Cutout Size(mm) | 75 | 95 | 125 | 145 | 175 |
| Beam Angle | 15°24/36° | ||||
| Optical Solution | Reflctor | ||||
| Input Voltage | AC 220-240V | ||||
| CRI | 90 | ||||
| Body Color | Black/White | ||||
| CCT | 3000/4000/5000k | ||||
| IP Rating | 20 | ||||
Things to know
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Theorylight does not accept responsibility for any installation costs associated with the replacement of this product and Theorylight reserves the right to alter specifications without prior notice.
